TTI Testing has a range of tensile / tensile-fatigue rated test machines with capacities from single Newtons up to 1,500kN.

The majority of our test machines are servo-hydraulic systems that utilise the CUBUS servo controller coupled with CUBUS testing software that gives a wide range of testing control. Whether its a basic load to failure or a more complicated block loading profile including stochastic loading for real time operating loads, TTI Testing can provide meet your requirements.

Many of our larger horizontal machines utilise a modular framework that allows inclusion of sub-assemblies and additional actuators giving ultimate flexibility.

Test bed lengths depending on machines can be up to 15 metres and the inclusion of an additional pull in jack can ensure that the maximum actuator stroke can always be available for higher extension samples.

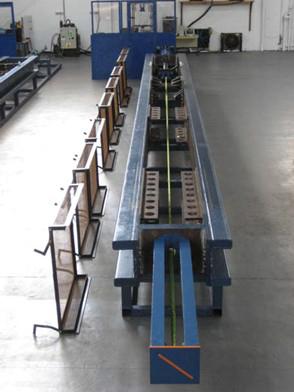

600kN Test Machines

TTI has two main 600kN actuators available. The main difference being the stroke with one at 2m and one at 1.5m.

  • 2m & 1.5m Dynamic Stroke

  • Sample Length up to 13m

  • Movable 'Static' Crosshead and ‘Pull in Jack’ capability

  • Rotary Motor Attachment

  • Wet or Dry Testing

  • Fatigue Rated

  • CUBUS Programmable Block Loading including Stochastic

  • Modular Framework allows Sub-Assemblies to be included in Testing
